Geberit Shower Channel Trap For CleanLine Series

Installation set for Geberit shower channels of the CleanLine series, floor construction height from 90 mm
DN 50
d, diameter 55mm

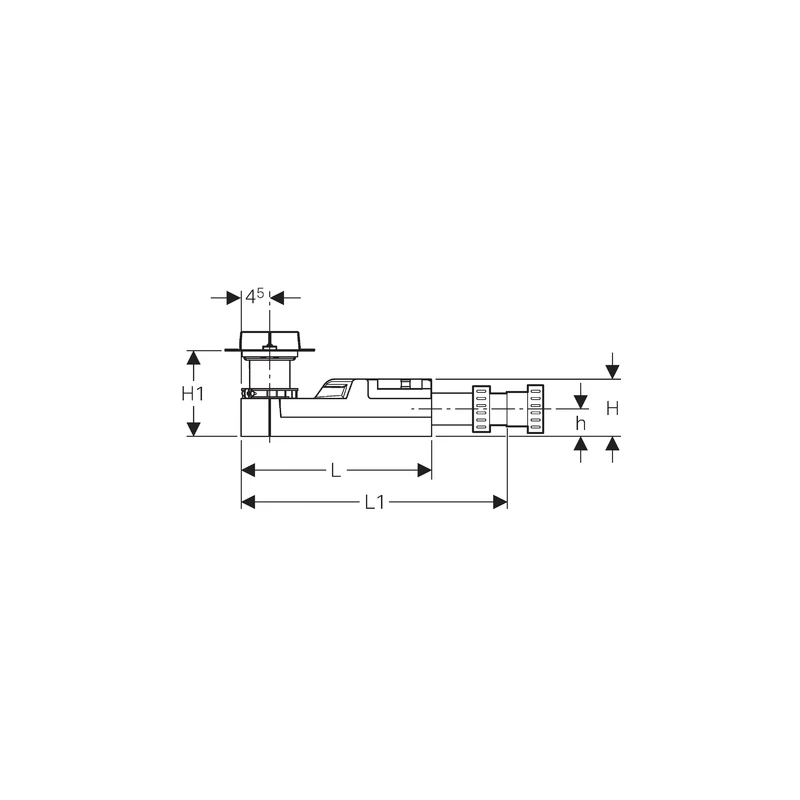

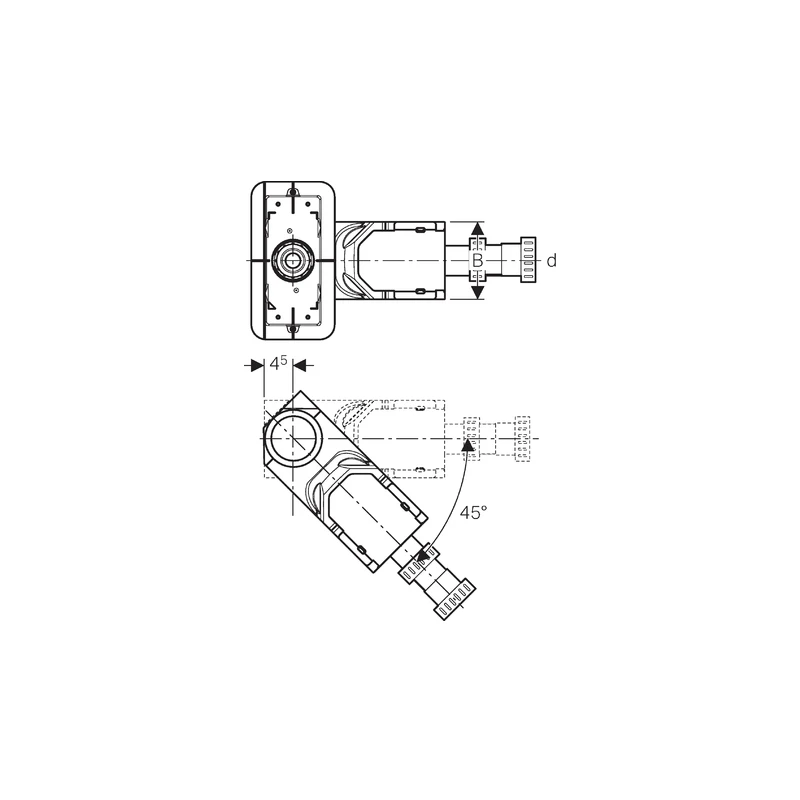

B 13cm
H 9cm
H1 9-20cm
h 4.2cm
L 30cm
L1 35.8cm
Protection box cover with reference line
Thin bed bonding flange
Trap made of PE-HD
Adaptor diameter 50 mm to G 2 diameter 55 mm)
Fastening material
Excluded: Shower channel of the CleanLine series
* For installation inside buildings
* For drainage of Geberit shower channels of the CleanLine series
* For floor constructions 90
